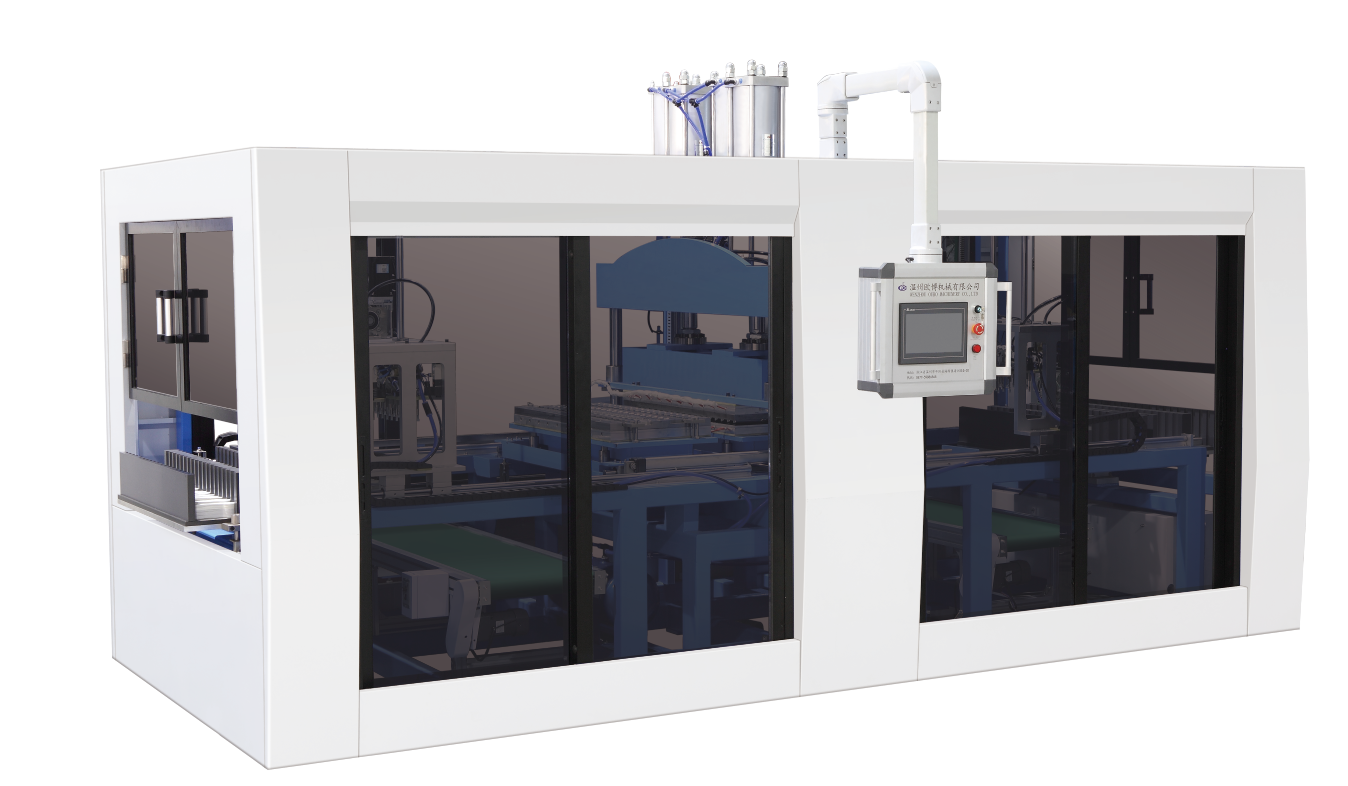

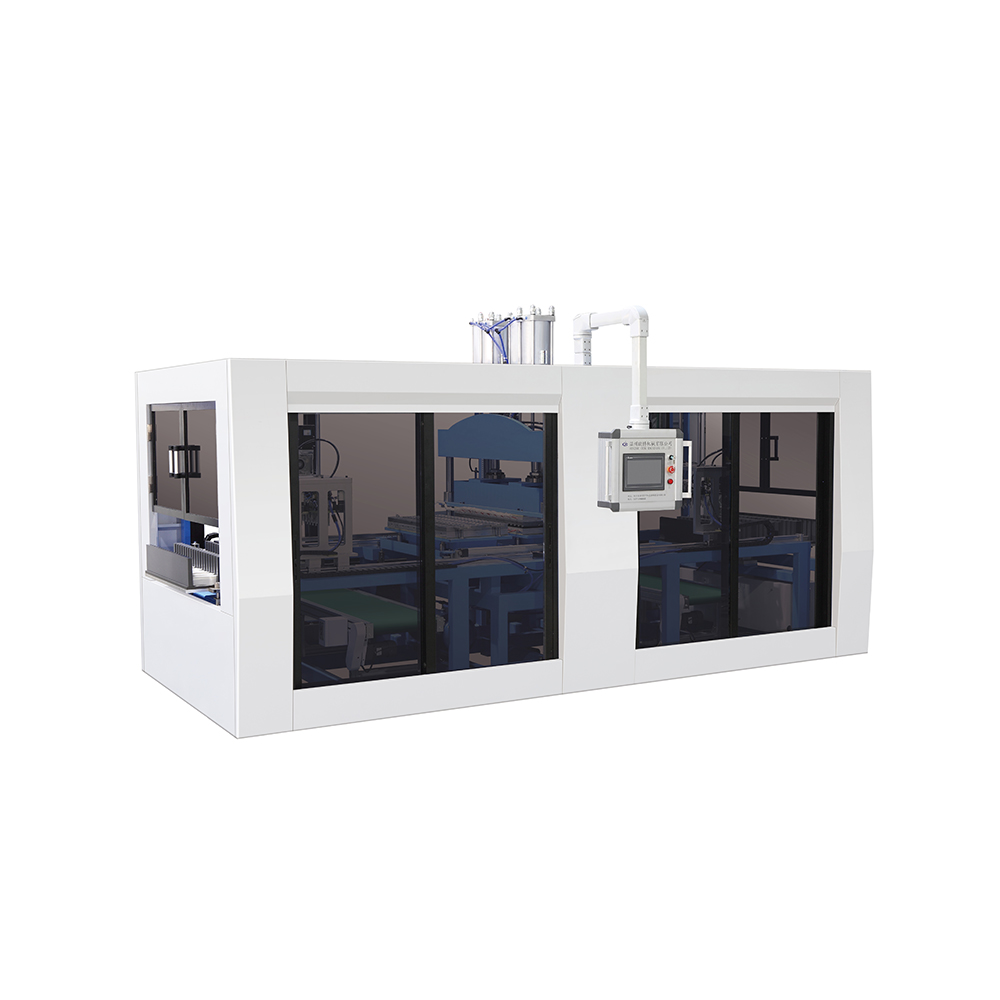

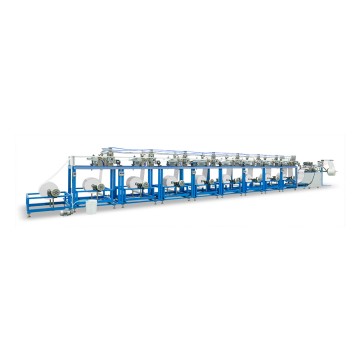

Dry Mold Paper Machine

Use Paper as raw material, Biodegradable, Recyclable, Healthy and Clean. Good choice for global eco-friendly purpose. Big potential and demand in daily life use.

product details

Technical Data

SN	Item	Specification
1	Output	170 pcs/min

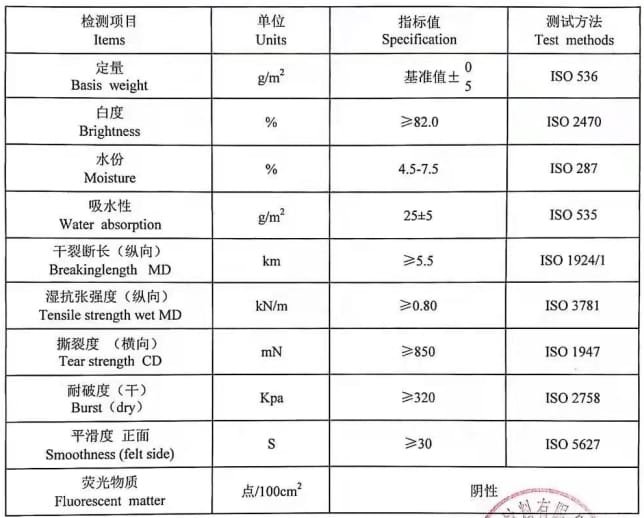

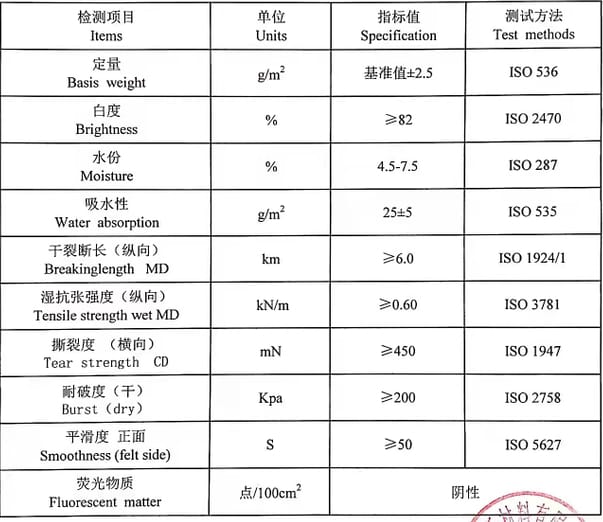

2	Raw Material	Environmental Paper rolls Raw paper is similar as paper cup raw material without PE coating
3	Max Paper Layers	3-9 layers ( first and last layer paper can be 60-80 gsm) (middle layer paper can be 100- 150gsm)
4	Material Thickness	600-1000gsm
5	Total Power	65KW
6	Power Supply	380V,50HZ (220V 60HZ) (3 Phase, 4 Wire)
7	Air	>2m³/min
8	Operator required	Lamination part machine 1 or 2 workers, Forming machine 1 worker Glue sealing part 1 worker Total workers about 3-4person needed
9	Installation Area	100㎡
10	Weight	10T

Making process

Paper feeding
Layer coating/Laminating/Die cutting
Forming/Glue sealing /Drying

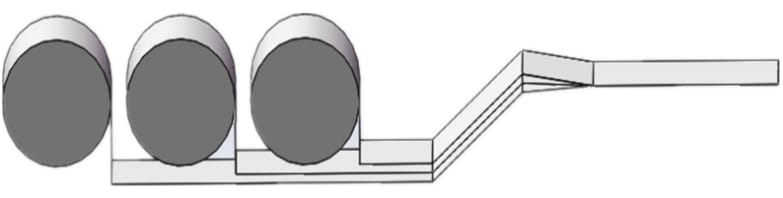

1. Glue layer coating & Lamination & Die cutting part machine

- Layer coating the raw paper with environmental protection glue

- Hot pressing and laminating 9 layers paper to 1 layer paper

- Out of shape with die cutting mold( Cutting mold is replaceable ), Max speed 300pcs/min

- Semi-finished product stack on the conveyor belt and move to pick up spot

2.Forming part machine

- Manually place the knife, fork or spoon into the fixed fixture

- Manipulator slide to forming station with semi-finished product (1 upper mold, 2 lower molds)

- Forming a complete shape, Max forming speed 170pcs/min

- Finished products are stacked on the conveyor belt and move to pick up spot

3.Glue Sealing & Drying part machine

- Manually place the knife, fork or spoon into the fixed fixture

- Place finished product to rubber clip by manipulator

- Move to glue station finish glue sealing process with rail device

- Pick up sealed product after high temperature drying

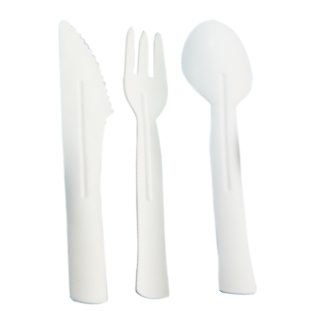

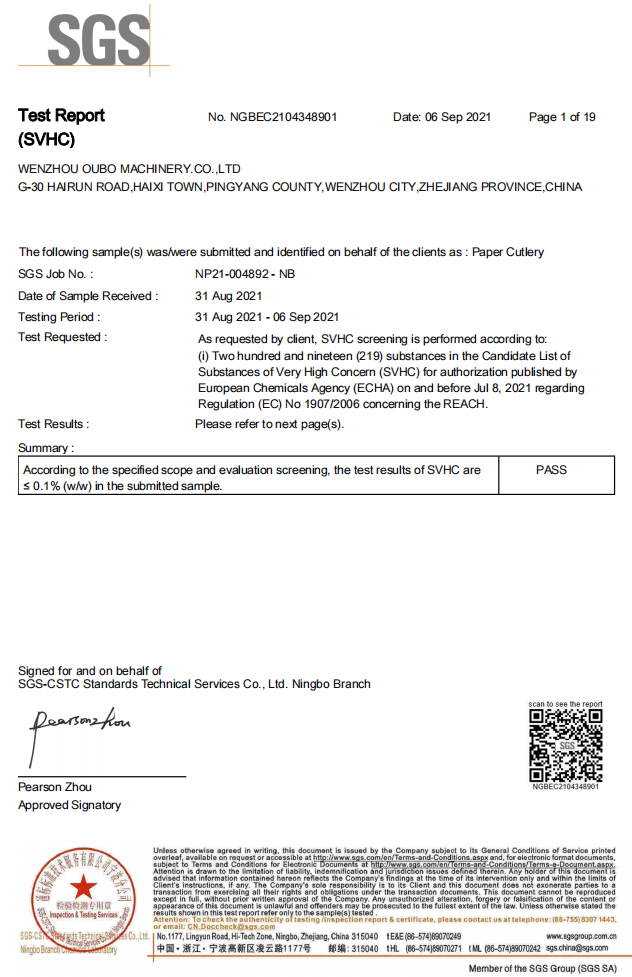

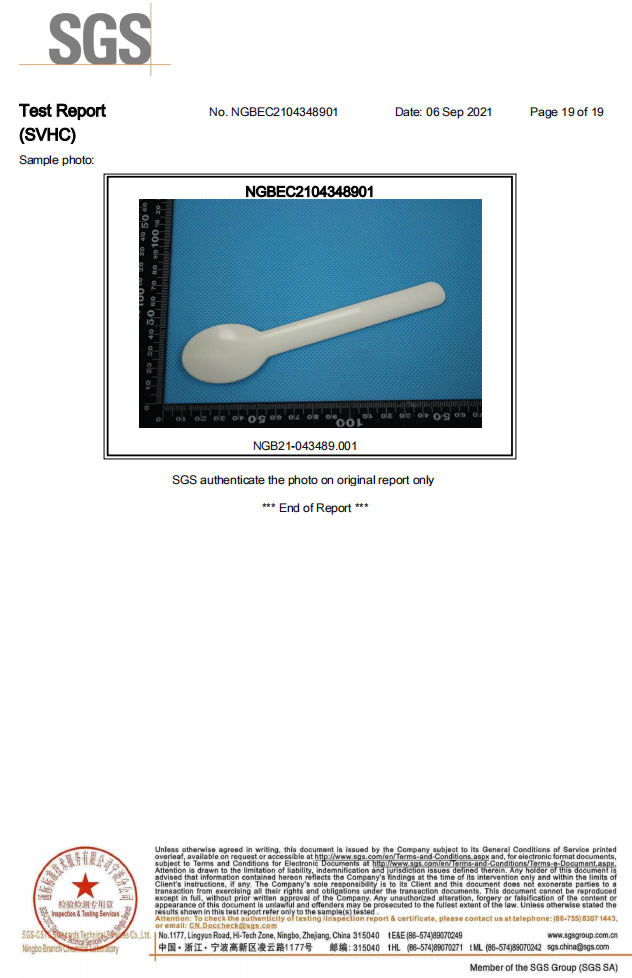

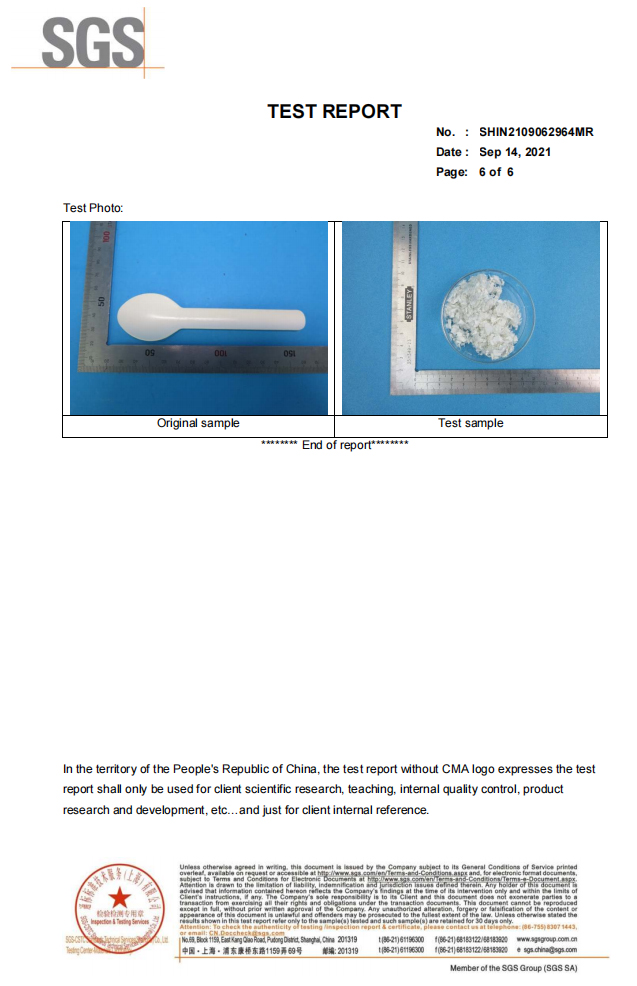

Paper cutlery feature

1.Water poof 2. Anti Oi 3. Temperature-resistance

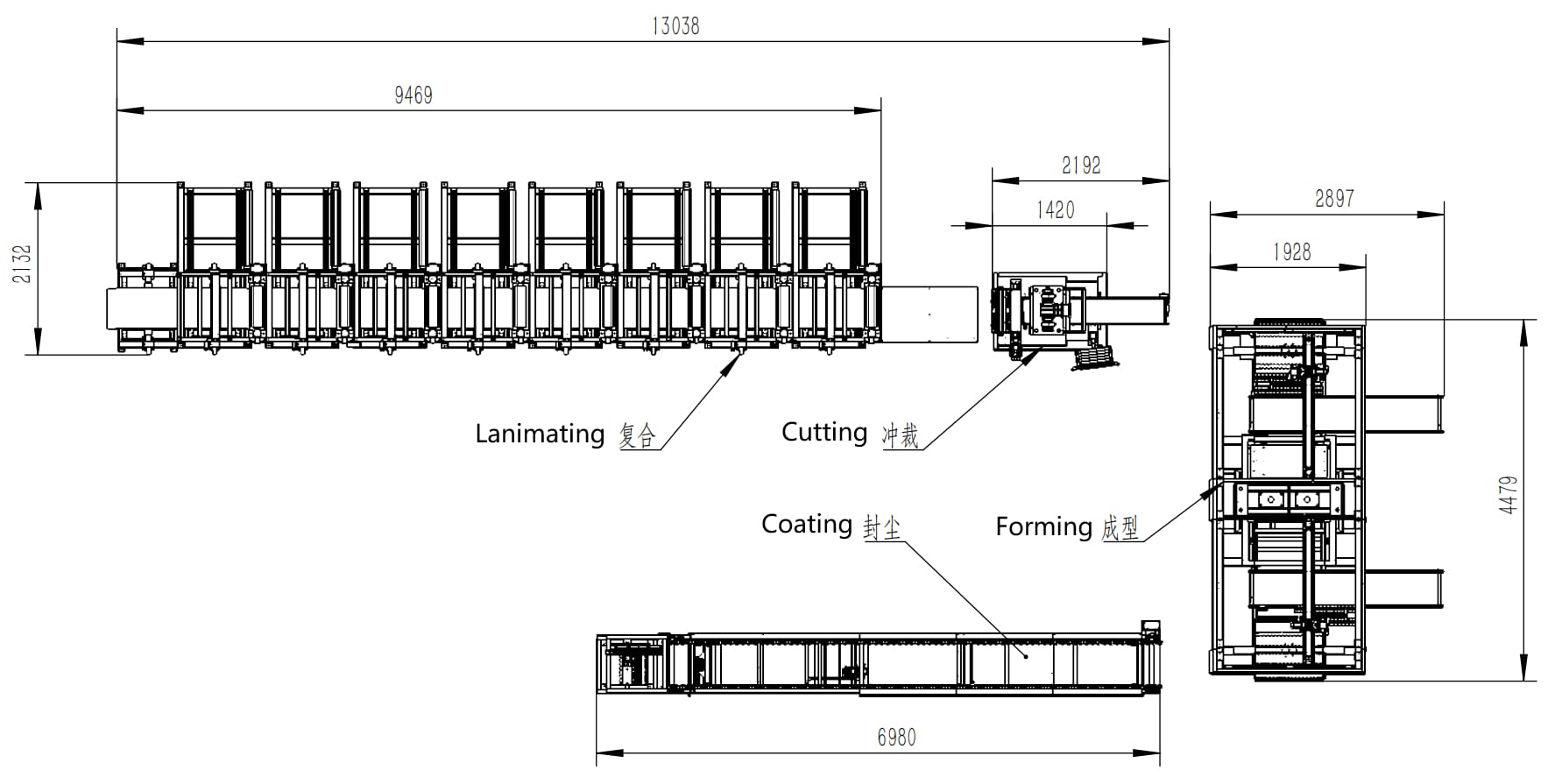

One Line Equipment Layout Drawing

One Line Include 3 sets machine as below

I. Pre-coating & Lamination & Die cutting part machine (Upgraded)

Item name	Specification	Qt’y
Touch screen	Inovance	1pc
PLC Control system	Inovance	1set
Die cutting servo motor	1.5kw Inovance	1pc
Roller servo motor	1kw Inovance	8pcs
Die cutting servo motor	4.4kw Inovance	1pc
Temperature module	Made in China	2pcs
Electrical	Schneider	Whole line
Air cylinder	Airtac,Taiwan	24pcs
Powder tension controller	5kg Made in China	9pcs
Air shaft	76mm Made in China	9pcs

II. Forming Machine parameter

Item name	Specification	Qt’y
Touch screen	Delta Taiwan	1pc
PLC Control system	Delta Taiwan	1pc
Manipulator servo motor	0.75kw Inovance	4pcs
Temperature module	Made in China	1pc
Pressure Cylinder	20T Made in China	2pcs
Vacuum pump	25L Made in China	1pc
Electrical	Schneider	Whole line

III. Sealing Machine parameter (Upgraded)

Item name	Specification	Qt’y
Touch screen	Inovance	1pc
PLC Control System	Inovance	1pc
Glue disk servo motor	0.4kw Inovance	1pc
Pathway servo motor	2kw Inovance	1pc
Manipulator servo motor	0.4kw Inovance	1pc
Temperature module	Made in China	1pc
Electrical	Schneider	Whole line
Heating tile	Made in China	64pcs
