DB-470 Automatic Plastic Cup Lids Making Machine

According to the market demand and the production technology. Our research staffs first developed the new product. Full Automatically Lid Machine. It is an automatic multi-function machine, improving the hygiene standards of food packaging. Not only solve the problem efficiently about the matters of large capital investment,amount labor input,complicated production process and low hygiene standard of production in plastic material producing. Such as PP\PC\PET\PVC. It also used widely, in packaging of hardware,food,medicine, PP/PS\PET\PVC plastic material. This machine with exquisite appearance and reasonable price. Is very popular with the customers at home and abroad.

product details

Technical Parameters

Description	DB-470
Suitable Products	Disposable Plastic lids/covers, clamshell boxes, plates, (egg) trays , containers, etc.
Suitable Material	PLA, PP, PS, PET, PVC, EPS,CORN STARCH etc
Forming Method	vacuum
Max. Forming Width	470mm
Max. Forming Length	2600mm
Max. Forming Depth	50mm
Max. Cutting Speed	10-30 Cycles/min
Material Cutting Thickness	0.1mm-1.0mm; over 1.0mm need heating function of cutting mold
Material Max Thickness	PS：2.0mm PP：1.5mm PET：1.2mm
Power	Max Power 90KW ; Actual Consume Power approx 12 KW
Power	380V / 50HZ OR 220V 60HZ Three phase four wire
Pressure of Water Supply	0.2MPa
Water Consumption	0.3m³/h 5P Chiller
Air Pressure	0.6-0.8MPa
Machine Install Size	5200mm×1600mm×1900mm
Machine Packing Size	5000mm×1500mm×1800mm
Weight	2200KG

Remark:

Due to technical improvements, the manufacturer reserves the right to modify the above parameters and functions without prior notice.

Main features

1. Compact structure, smooth moving,convenient operation and easy maintenance.

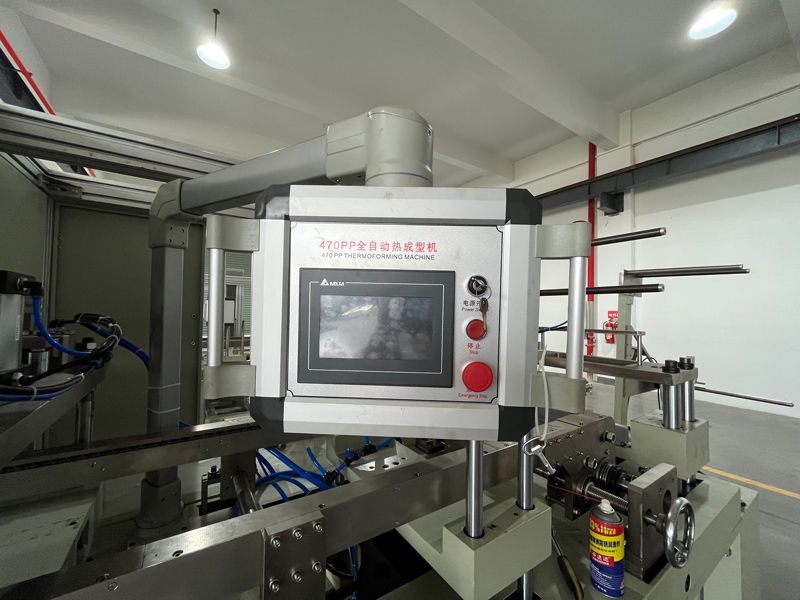

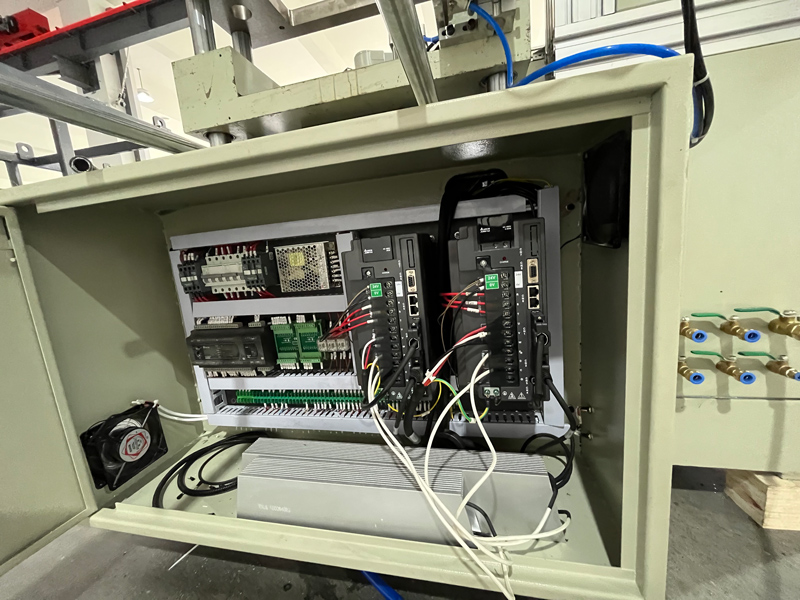

2. Infinitely variable frequency speed regulation, PLC circuit control panel.

3. Adjustable route, mould changing more easily.

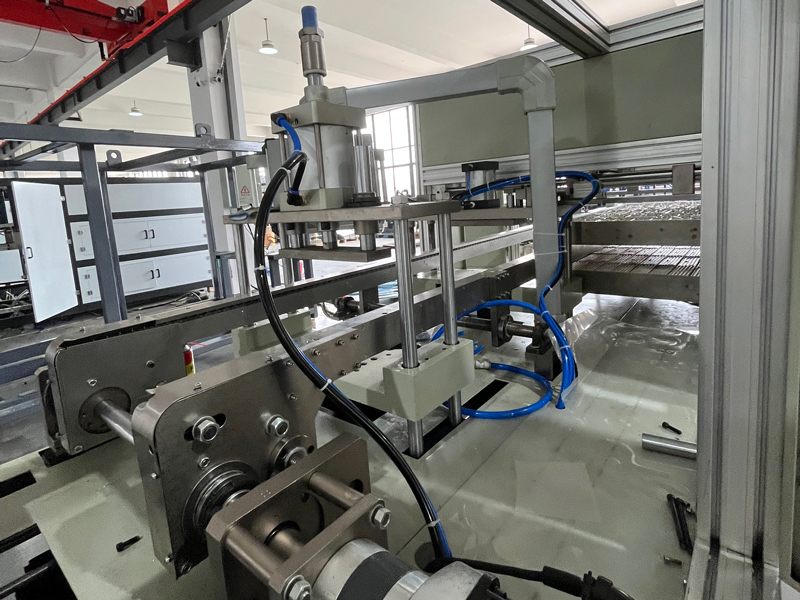

4. It adopts manipulation grip to feeding, accurate and reliable synchronously.

5. Designing all mould according to customers’ requirements.

Applications

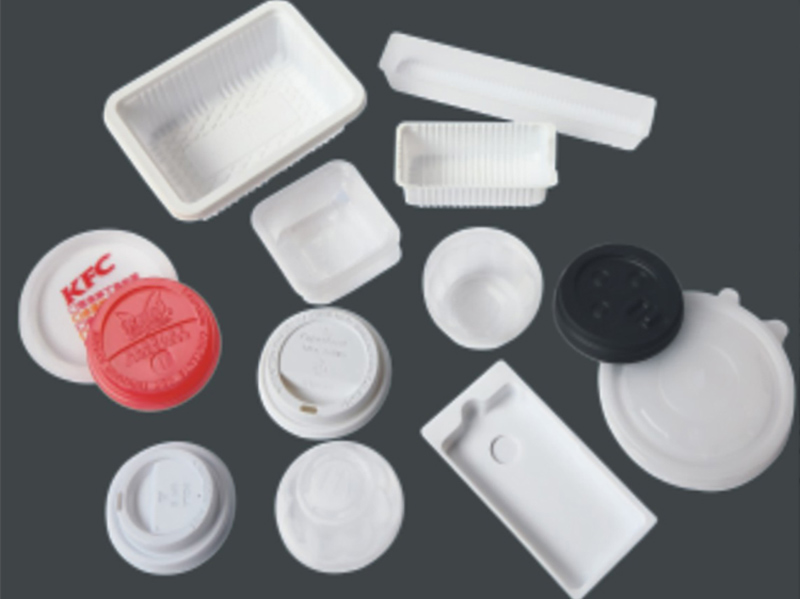

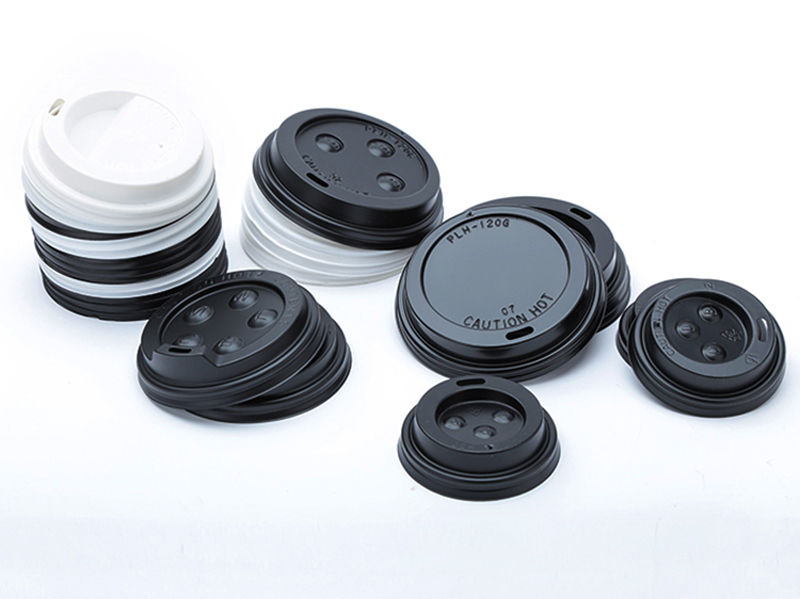

PLA, PVC, PET, PS,PP as raw materials, changing the mold at one machine to manufacturing lids, covers, trays, plates, boxes, food and medical trays, etc.
