01

Servo Plastic Cup Forming Machine BC-S850

BC-S850 Servo plastic cup forming machine typically uses a servo motor to control the movement and precision of the forming process, resulting in high-quality and consistent cup products. The machine may also include additional features such as automatic feeding and stacking, as well as customizable settings for different cup sizes and materials.private server cupping machines offer a number of advantages over traditional hydraulic cupping machines, including increased precision, faster production speed, reduced labor costs, consistency, and customization.

    Contact us
    product details

    Machine introduction

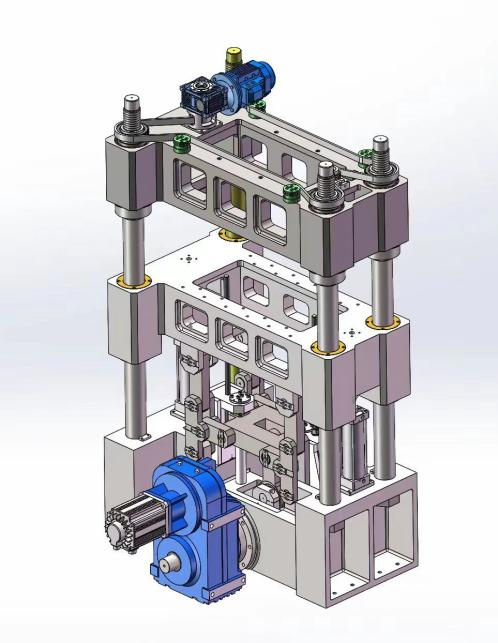

    1. Molding and cutting system
    Forming and cutting station adopts four-column orientation, five-fulcrum structure, with 15KW servo motor forming and cutting integration, more stable operation, compared with the hydraulic system has more energy-saving characteristics;

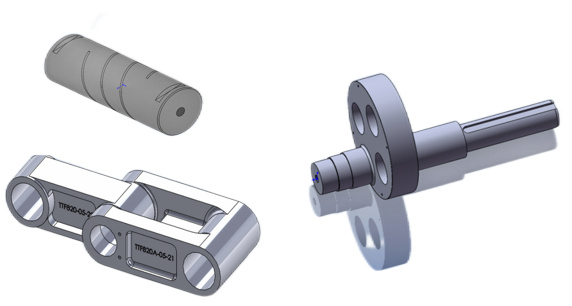

    The swing arm shaft is made of high-grade nitriding steel 38CrMoAl, which can obtain high wear resistance after heat treatment and surface salt bath nitriding treatment, and improve the fatigue strength and bending strength. And there are three spiral oil grooves on the swing arm shaft, which further improves the service life of the parts with sufficient oil lubrication;
    product description04zff
    The swing arm is made of ZG45 material with excellent mechanical properties and good toughness by precision CNC machining center, which makes it easier to make complex shapes and non-stress concentrated parts.
    product description03eri

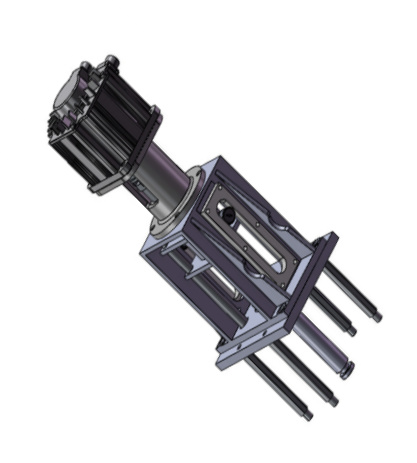

    2. Forming and drawing system
    With 11KW servo drawing, it has higher controllability compared with cylinder control, and the drawing is more uniform and stable.
    product description027dx
    3. Heating system
    It is divided into upper furnace (10 zones and 14 rows) and lower furnace (9 zones and 14 rows). The heating tile adopts embedded ceramic far-infrared radiation component, single heating power is 800W, high thermal effect and high safety. The electric furnace is embedded with vacuum insulation cotton, which makes the temperature more concentrated and saves energy.
    product description012as
    4. Conveying system and lubrication system
    4.5KW servo motor is used for conveying pieces to improve the accuracy and stability of conveying length. The guide rail is made of die steel (38crMulv) with surface nitriding treatment, high hardness and long service life.
    The electric lubricating oil pump is controlled by the computer, and the lubricating oil is injected into the mechanical structure automatically and quantitatively to prolong the service life of the machine.

    Technical parameter

    Model

    BC-S850

    Applicable material

    PP, PS, PET, PVC, ABS, HIPS, PLA, corn starch, etc

    Maximum forming area

    850*500mm

    Maximum forming depth

    200mm

    Applicable sheet thickness

    0.3-2 mm

    Max speed

    30 molds/min

    Whole power

    240kw

    Heating power

    216kw (270 PCS *800w)

    Main motor power

    15kw

    Tensile servo power

    11kw

    Conveying chain servo power

    4.5 kw

    Electric furnace size

    Upper: 3500*950mm Lower: 3250*950mm

    Power source

    Three-phase four-wire, 380V 50Hz

    Air pressure

    0.6-0.8 MPa

    Machine weight

    ≈5T

    Machine size

    5220*2000*2510mm

    Machine configuration

    Name

    Brand

    Servo motor, drive

    INOVANCE

    Reduction gear

    Omet

    Ac contactor, circuit breaker

    Schneider

    Drawing screw

    Shangyin, Taiwan

    Proximity switch

    Yangming, Taiwan

    Intermediate relay

    Omron

    Solenoid valve

    SMC

    Air cylinder

    Airtac

    Heating pad

    Jiangsu (Province)

    Temperature module

    XINJIE

    Switching power supply

    Schneider

    Air switch

    Chint

    PLC

    XINJIE

    Solid state module

    Yangming, Taiwan

    Touch screen

    TONGTAI, Kunlun
