3-Stations ZN650 Plastic Thermoformer

ZN760 Large Automatic Thermoforming Machine is controled by 2 independent servo motors each station. combined with the advanced automation system.
suitable material includes PP,PET,PS,PVC,PE,OPS,biodegradable materials.
The max forming area is 760*650 mm, max forming depth is 120 mm, max speed is 40 molds/min. Using more advanced domestic molding technology combined with foreign countries, it reduces labor, prevents secondary pollution, saves materials, improves product quality and product qualification rate, doubles production efficiency, convenient operation and reliability, strong functionality, high degree of automation, dedicated to the automatic production line of sheet thermoforming and automatic die cutting.The frame is welded with steel box body combine with forming, cutting and stacking three station, with strong structure and no deformation. Both the bracket and box body are pressurized, with high density. The shape is designed with sliding door, beautiful appearance and easy to maintain.

product details

Function Brief Introduction

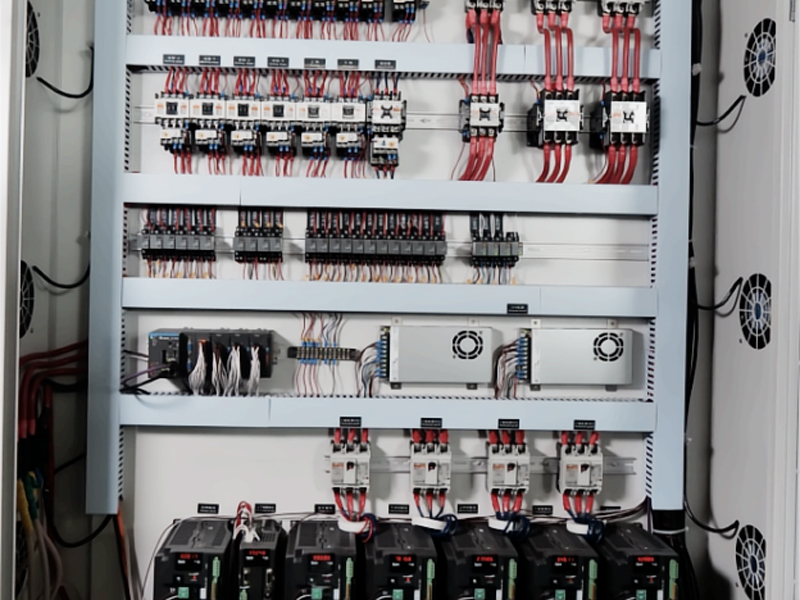

The ZN760 three-station fully automatic plastic positive and negative pressure thermoforming machine is a high-speed and efficient forming equipment. Its maximum forming area is 760*650*120mm, and the maximum speed can reach 40 molds/min. Each working station is controlled by independent servo motors, totally 7 servo motors. This machine adopts advanced PLC control system and human-machine interface operation, which makes the operation simple and convenient.

Applications

Wide material compatibility: The machine can handle various types of plastic sheets, including .PLA, PP, PS, PET, PE,PVC, EPS,CORN STARCH etc, making it versatile and suitable for different applications. the Three-Position Fully Automatic Plastic Positive and Negative Pressure Thermoforming Machine can be widely used in various industries, such as packaging, food-processing, medical equipment, electric appliance, automotive parts, and more, providing a cost-effective and efficient solution for plastic product manufacturing.

Cooperate Friend Country

Now our machines have been widely used in many countries, such as Germany, France, Albania, Poland, Macedonia, Chile, Argentina, Ecuador, Middle East, Middle Asia, Southeast Asia, Africa and etc.

Technical Parameters

Model	ZN-760
Suitable Products	Disposable Plastic lids/covers, clamshell boxes, plates, (egg) trays , containers, etc.
Suitable Material	PLA, PP, PS, PET, PE,PVC, EPS,CORN STARCH etc
Forming Method	Positive & Negative Pressure
Max Sheet Width	400-830mm
Max. Forming Width	760mm
Max. Forming Length	650mm
Max. Forming Depth	150mm
Max. Cutting Speed	10-40 Cycles/min
Material Cutting Thickness	0.1mm-1.0mm; over 1.0mm need heating function of cutting mold
Material Max Thickness	PS：0.1-2.0mm PP：0.1-1.5mm PET：0.1-1.2mm
Power	Max Power 90KW ; Actual Consume Power approx 35KW
Voltage	380V / 50HZ OR 220V 60HZ Three phase four wire
Pressure of Water Supply	0.2MPa
Water Consumption	0.3m³/h 5P Chiller
Air Pressure	0.5-0.8MPa
Air Exhaust Volume	≥1.2m³/min
Air Compressor	≥11KW
Machine Install Size	10500mm×2100mm×2000mm
Machine Packing Size	10500mm×2100mm×2000mm
Weight	11000KG
