3-Stations ZN550 Plastic Thermoformer

ZN550 automatic positive and negative thermoforming machine applys the latest international plastic sheet forming technology, it has 3 stations (forming,cutting and stacking) It works effectively in the production of PP, PS, PET, PVC and PLA plastic products, such as reducing capital investment, large labor input, complicated production process, lower hygienic security, etc. At the same time, the production line can run simultaneously and synchronously. Using more advanced domestic molding technology combined with foreign countries, it reduces labor, prevents secondary pollution, saves materials, improves product quality and product qualification rate, doubles production efficiency, convenient operation and reliability, strong functionality, high degree of automation, dedicated to the automatic production line of sheet thermoforming and automatic die cutting.

product details

Technical Parameters

Description	ZN550
Suitable Products	Disposable Plastic lids/covers, clamshell boxes, plates, (egg) trays , containers, etc.
Suitable Material	PP, PS, PET,PLA, PVC, EPS
Max. Width of Material	580mm
Max. Forming Width	550mm
Max. Forming Length	350mm
Max. Forming Depth	80mm
Max. Cutting Speed	10-25 Cycles/min
Material Thickness	0.1mm-1.2mm
Main Power	49KW
Power	380V/ 50HZ (Three-phase and four-wire)
Pressure of Water Supply	0.2MPa
Water Consumption	0.3m3/h (Tap water or Circulating cooling water)
Air Exhaust Volume	≥0.8m3/min 800L
Air Pressure	0.6-0.8MPa Strong or weak? Various by materials?
Machine Install Size	6000×1800×2100mm
Machine Packing Size	6200×2000×2300mm
Weight	5500KG

Remark:

Due to technical improvements, the manufacturer reserves the right to modify the above parameters and functions without prior notice.

Details Overview

This machine mainly consists of three stations: forming station, cuttiing station, and stacking station.

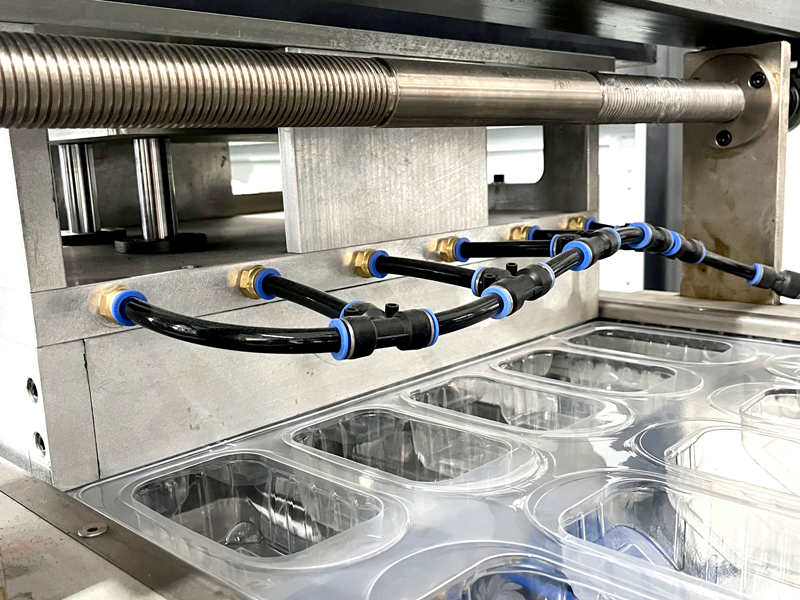

Forming station: At this station, the machine performs the process of heating the plastic sheet to a specific temperature, then drawing it onto a mold using positive and negative pressure to form the desired shape.

Cutting station: After the forming process, the machine moves to the cutting station where it performs the operation of cutting out the formed products according to the required shape and size.

Stacking station: The final station is the stacking station, where the finished products are automatically stacked and collected, ready for further processing or packaging.

Each working station operates sequentially and efficiently, thereby enhancing productivity and reducing labor costs. The machine is widely used in the production of plastic cups, trays, boxes, and other plastic products.

Machine Configuration List

NAME	BRAND
Touch Screen	INOVANCE
PLC	INOVANCE
Encoder	Korea
Relay	Schneider France
Proximity switch	Schneider France
power switch	Schneider France
Servo Motor	INOVANCE
Temperature module	Hexin China
Circuit breaker	Schneider France
Button switch	Schneider France
Emergency stop switch	Schneider France
Solenoid valve	AIRTAC Taiwan
Cylinder	AIRTAC Taiwan
Solid state relay	Yangming Taiwan
Reducer	Tongli China
Pressure reducing valve	AIRTAC Taiwan
